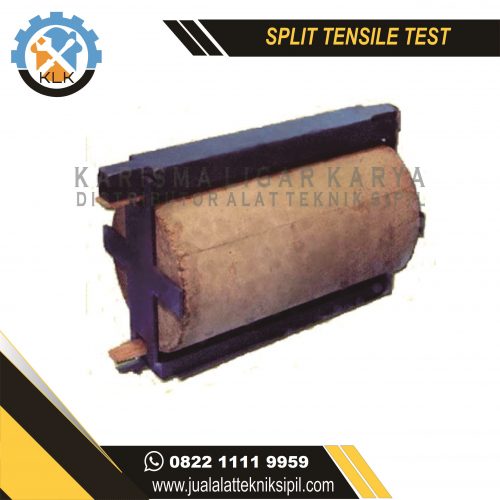

Jual Split Tensile Test
For split cylinder test on specimens of 150 x 300 mm (diameter x length) self-supporting lower platen. Dimension (l x w x h) : 35 x 20 x 25 cm.
Jual Compression Machine 2000 kN (Alat Uji Tekan Beton)
Alat penguji mutu beton, ( Compression Machine 2000 kN)
tersedia dalam beberapa varian diantaranya:
compression machine electric Manual beserta display analog dan digital.
ASTM C-39 , For determining compressive strength of concrete cube 15 x 15 x15 cm or concrete cylinder 15 cm dia. x 30 cn height, 2000 kN capacity, 10 kN increments
Heavy-duty welded steel construction 30 cm . (profile steel columns 10 thick botttom and upper plate)
Hydraulic System, For 2000 kN Cap Hydraulic System
Mild-Steel cylinder, Hard-chromed piston, 230 mm diameter , Maximum working pressure 50.000 kPa, Overall dimension 300 mm dia. x 320 mm height Single action, gravity return, Mild-Steel cylinder, Hard-chromed piston, 250 mm diameter, Maximum working pressure 50.000 kPa
Hydraulic PumpElectric, 220 V AC, 50-60 HZ, 750 Watt , 1 Phase, Single action, variable speed, 6.000 ml reservoir capacity Maximum working pressure 50.000 kPa, Single action, gravity return.
280 mm dial diameter.With maximum load pointer.
Upper : 180 x 180 mm, ball seating Lower : 250 mm diameter.
Call : 081212209178
This digital concrete test hammer, microprocessor operated, entirely designed and manufactured by Matest with advanced technology, performs basic concrete testing with continuous automatic recording of all parameters in accordance with EN 12504-2 Specifications, register and process data and then transfer them to a PC The unit consists of the standard mechanical model C380, but equipped with an electronic transducer that measures the rebound values and supplies automatically the results on a graphic display.
During test performing
• Shows index value
• Shows average index value
• Allows to select measuring system in MpA or Psi
• Shows numbers of performed rebounds
• Shows date and time
• Identifies tested element
• Identifies automatically and shows rebound angle
• Shows battery life
• Possibility to store, display on graphic LCD 64×124 and download data to PC over 20000 tests
• Automatic statistical processing and readings
• Automatic conversion of rebound index to equivalent compression strength in psi, N/mm2, kg/cm2
• High accuracy and resolution
• Impact energy: 2,207 Joule (Nm)
• Measuring range: 10 – 120 N/mm2
• Interface: RS232
• Power source: 6 rechargeable batteries AA NiMh 2000mA
• Battery life: 60 hours with automatic shut down
• Operating temperature: -10°C +60°C
Supplied complete with data transfer software, data transfer cable RS232, battery charger, abrasive stone, carrying case
Dimensions with case: 330x180x120 mm
Weight: 3 kg
The digital Matest test hammer is suitable to be connected to the Ultrasonic Tester “high performance” mod. C372N for “combined ultrasonic and rebound tests with automatic data acquisition, processing and store of the results
