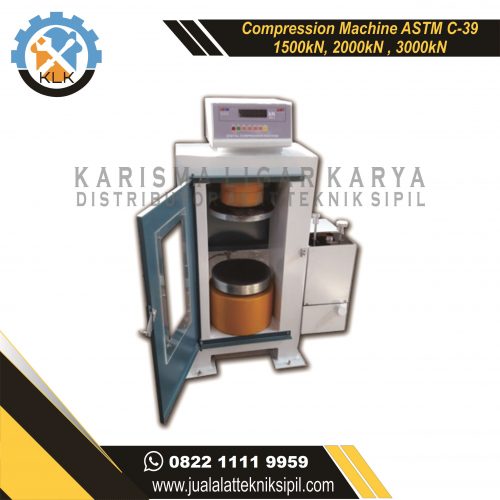

Compression Machine Digital 2000 KN

Alat penguji mutu beton, ( Compression Machine 2000 kN)

Spesifikasi :

• Fram : Heavy-duty welded steel contruction 30 cm profile steel columns 10 cm thick botom and upper and upper plate.
• Hydraulic System : Mild-Steel cylinder.
• Cap: Hard-chormed piston, 230 mm dia max working pressure 50.000 kPa Overal dimension 300 mm dia x 320 mm height. Single action, gravity return.
• Hydraulic Pump : Electric, 220 V AC, 50-60 Hz, 1000 Watt,1 Phase single action, variable speed 6.000 ml reservoir cap max working pressure 50.000 kPa. Single action, gravity return
• Force Gauge : tube manometer, 280 mm dial dia with max load pointer. Steel box housing. Calibrated by KAN.V
• Compressive : Upper : 180 x 180 mm, ball seating.
• Platen : Lower : 250 mm dia.
• Clearance : Horizontal : 290 mm Vertical : 310 mm.
• Dimension : 760 x 320 x 1400 mm ( l x w x h ) approx.
• Weight : 500 kg.
