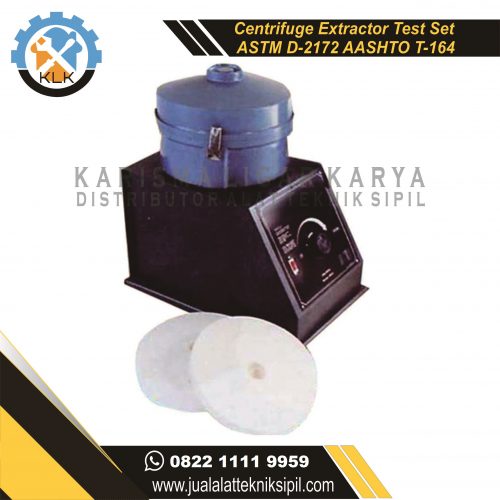

Jual Centrifuge Extractor Test
Standard Testing : ASTM D-2172 / AASHTO T-164; According SNI 03-6894-2002
For determining bitument content in hot mixed paving and pavement samples.
Consist of :
- Centrifuge Extractor : Electric, 220 V-AC, variable speed DC motor up to 3600 rpm, alumunium housing, removeable cover and bowl,1500 gram capacity.
- Filter Paper : Low ash filter paper, box of 50 sheet.
- Solvent : Perchloraethylen (PCE), bottled.
Dimension (l x w x h): 60 x 40 x 60 cm / Gross weight: 50 Kg,
Jual Ductility of Bituminous Material
Standard Testing : ASTM D-113 / AASHTO T-51; According SNI 06 -2432-1991
For determining ductility of formed asphalt/ cement or semi solid bitument by measuring distance of elangation before breaking point when two end of briquet are pulled a part at a specific speed and temperature.
Consist of :
- Ductility Mold : Form sample shape and hold end during test, made of brass, provided with base.
- Ductility Machine : Electric 220 V-AC, stainless steel bath, provided with temperature control.
- Pulling speed : 5 cm/min, / Travel range : 150 cm.
Dimension (l x w x h) : 244 x 80 x 80 cm / Gross weight : 150 Kg
Laboratory Penetration Test Set
ASTM D-5 AASHTO T-49 For determining consistency of bituminous materials
Penetrometer With Timer
Electric control box, 220 V-AC variable timer, ON-OFF and START switch for automatic plunger release cast alumunium frame, 4 1/2? dial indicator, 400 x 0.1 mm dial, knob control : manual + electric weight of needle and plunger:50 gr
Penetration NeedleSteel needle with brass shank, 1 m diam.
Glass, 100 mm i.d approx.
Alumunium sheet, provided with cap. 60 gram capacity.
Water Content In Petroleum
Water Content In Petroleum Products
ASTM D-95 AASHTO T-55For determining water in crude petroleum, tars and products derived from these materials
- Flask Heat resistance glass, 500 ml capacity 1 Pc
- Water Trap Glass for receiving distilated water 1 Pc
- Condenser Glass, jacketed 1 Pc
- Support Assembly For holding apparatus assembly 1 Set
- Flask Support Variable height adjustment 1 Pc
- Bunsen Burner Heat resource 1 Pc
- Asbestos Wire Gauze 15 x 15 cm 1 PcAlso required,
but not part of this set :
- Triple Beam Balance
- Cooling System
- Butane Field Heater
- Glass Funnel
- Leather Gloves
Dimension (l x w x h) : 25 x 25 x 60 cm.
Gross Weight : 10 kg
